- Phlogopite mica tape is a high-performance insulation product
- Using high-quality phlogopite as the base material
- Type: phlogopite tape with glass fiber cloth or PE film
- Excellent insulation performance at high temperature
- At a temperature of 750~950°C, no breakdown within 180 minutes of power-on;
- with good environmental performance
- Product ingredients are asbestos-free
- No toxic gas will be produced at high temperature;
- It has the characteristics of acid and alkali resistance, anti-corona and anti-radiation;
Product
GP series

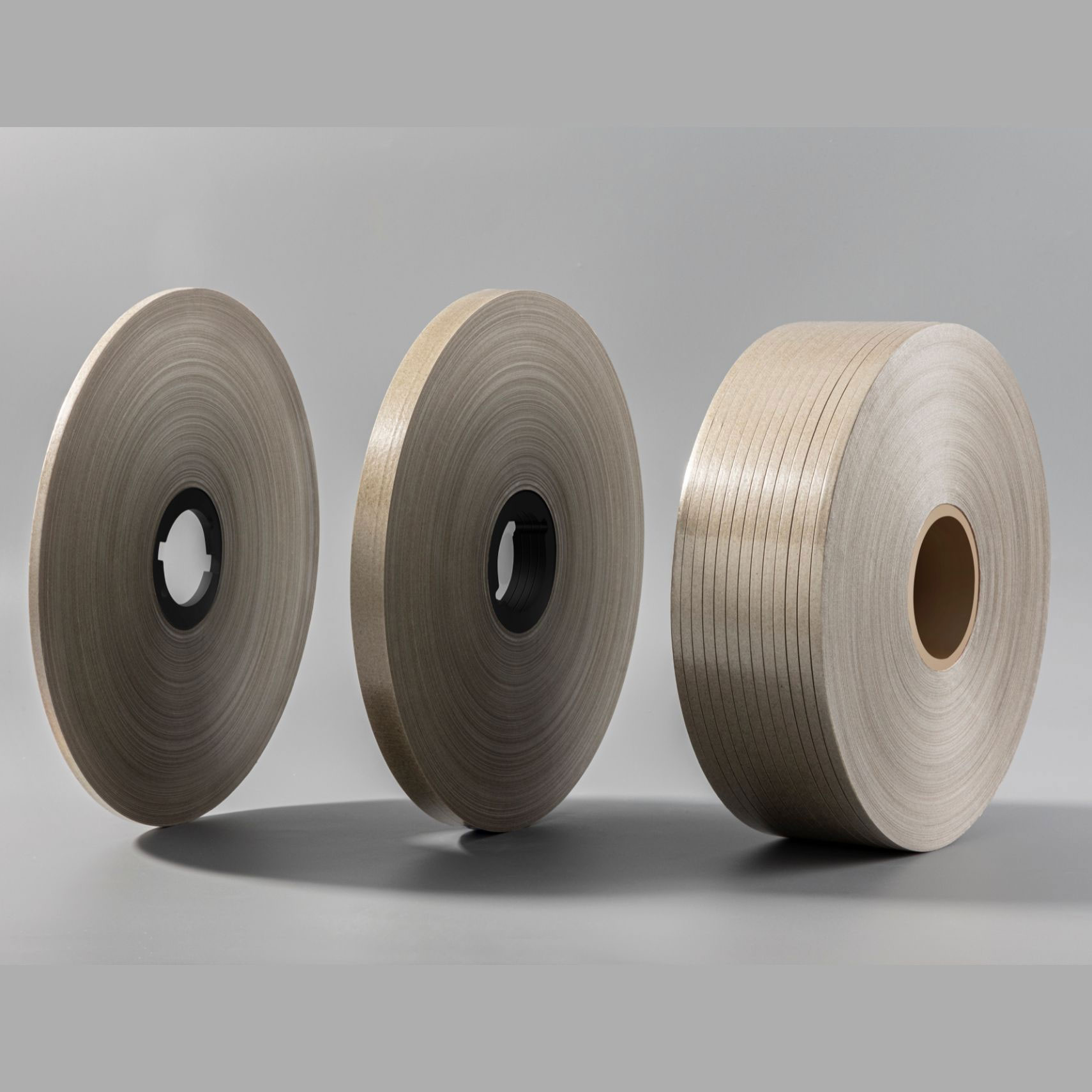

Phlogopite Mica Tape
Product Details Specifications
The common features of YT MICA with high temperature resistant multi-layer phlogopite mica tape include good mechanical and physical properties, a good balance between rigidity and toughness, good tensile strength and certain flexibility, and it is more compatible with the product when it is wrapped and laminated. close.
YT MICA with high temperature resistant multi-layer phlogopite mica tape uses high-quality phlogopite mica as the substrate, so that the product has good high temperature performance, electrical performance, and excellent wear resistance and chemical resistance. YT MICA with high temperature multi-layer phlogopite mica with different modifications and enhanced specifications provides customized performance for special processing and end customers.
YT MICA with high temperature resistant multi-layer phlogopite mica tape is usually used in demanding wire and cable, automobile, household appliances, aerospace equipment and construction industries.
High temperature resistant multilayer phlogopite tape | |||||||||
High temperature resistant multilayer phlogopite tape Product identification code541-3S(G/P)304P | |||||||||
Basic information | |||||||||
Yintian?The common characteristics of the three in one phlogopite mica tape with good mechanical and physical properties. It ensures good tensile strength and certain softness, and is closer to the product when wrapping and fitting. Yitian?Three in one phlogopite mica tape uses high-quality phlogopite mica as the base material, so that the product has good high temperature performance, electrical performance, excellent wear resistance and chemical resistance. Yitian?High temperature resistant multilayer phlogopite with different modified and enhanced specifications provides customized performance for special processing and end customers. Yitian?High temperature resistant multilayer phlogopite mica tape is usually used in demanding wire and cable, automobile, household appliances, aerospace equipment and construction industry. | |||||||||
Product Description
| |||||||||
High temperature resistant multilayer phlogopite tape 541-3S (G/P) 304P is a strip of mica insulation material, which is made of high-quality phlogopite tape as the base material, covered with alkali free glass fiber cloth and PE film on both sides, bonded with organic silica gel adhesive or other heat resistant adhesive, and baked and cut. The product with good storage stability under normal conditions, and its nominal thickness can be customized. | |||||||||
Material performance | numerical value | unit | Test standards | ||||||
Color | golden | Visual inspection | |||||||
Thickness | 0.14±0.02 | mm | GB/T5019.2 | ||||||
Total content | 200±10 | g/m2 | GB/T5019.2 | ||||||
Density | 1.4±0.1 | g/cm3 | GB/T5019.2 | ||||||
Mica content | >55 | % | GB/T5019.2 | ||||||
Mechanical properties | |||||||||
Tensile strength | >120N | N/10mm | GB/T5019.2 | ||||||
Tensile strength | |||||||||
Breakdown strength | ≥40 | MV/m | GB/T5019.2 | ||||||
Volume resistivity | ≥1×1010 | MΩ?m | GB/T5019.2 | ||||||
Insulation resistance | There is no breakdown or short circuit when the rated voltage is energized for 90min under 950 ℃± 50 ℃ flame | / | GB/T19216.21 | ||||||
Fire resistance | 1000 ℃ flame without burning through within 10min | / |
Visual inspection | ||||||
Revise: November 1th, 2022 | Edition:V1.0 | ||||||||
This information is provided by Beijing Yitian Mica Technology Co., Ltd This information is for reference only. It is strongly recommended that you contact us to verify the data value before final selection of materials. Hotline: 4006005568 |
